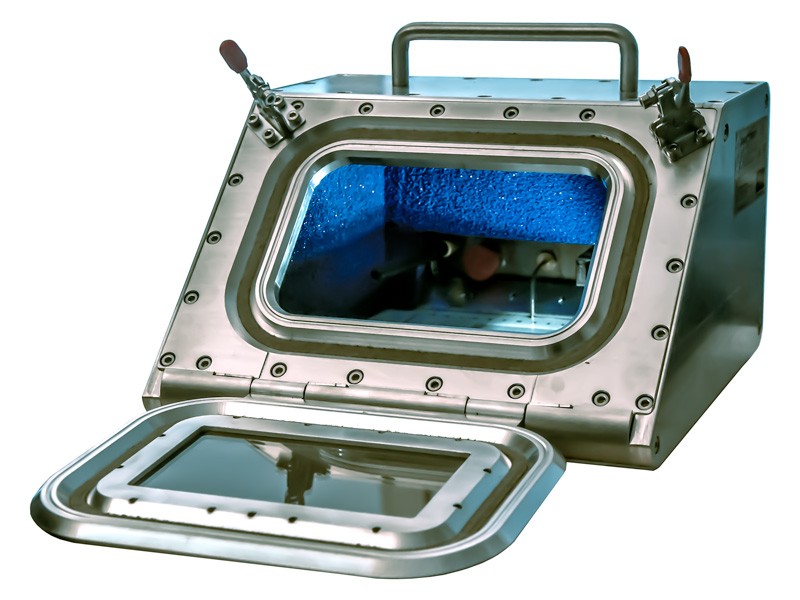

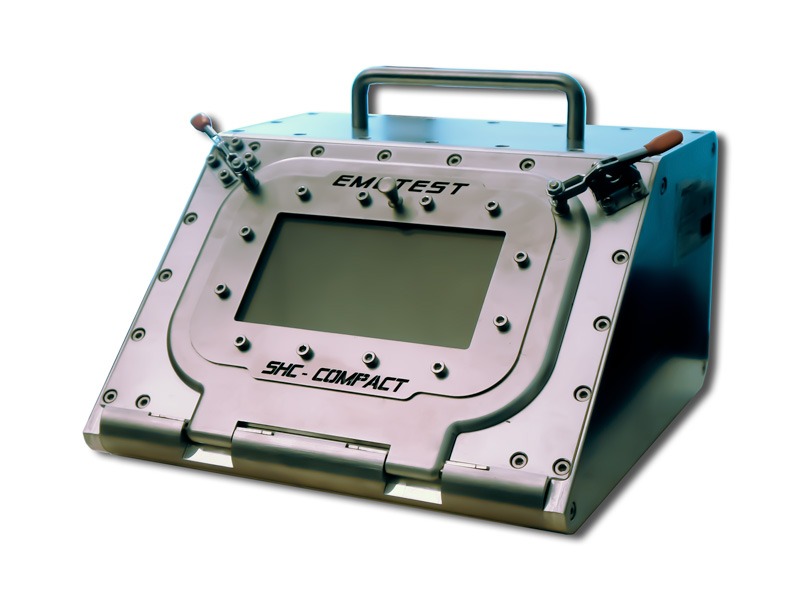

  • SHC COMPACT - Portable Anechoic Chamber







    • Operating Frequency: DC – 6000 MHz
    • Shielding Frequency: DC - 18 GHz
    • Shielding performance: >60 dB up to 120 dB*
    • Outer Dimensions: 25(L) x 25(W) x 15(H) cm
    • Door clearance: 15(L) x 9(H) cm
    • DUT MAX Size: 15(L) x 18(W) x 6(H) cm

    • * variable with frequency
    • Specifically designed for telecommunication applications
    • Ideal for small devices like mobile phones etc.
    • Precompliance EMC Tests (Radiation and Immunity).
    • Isotropic sensors calibration
    • Path loss measurements
    • Receiver sensitivity test
    • Any sensitive measurements where shielding is needed
    • Engineered and completely manufactured in Italy.
    • Ruggedized fully Aeronautic ALUMINUM and INOX construction
    • Unique compact space-saving design
    • Suitable for small RF / microwave devices and/or antennas
    • Wideband High effective RF shielding
    • Excellent quality – Military standard

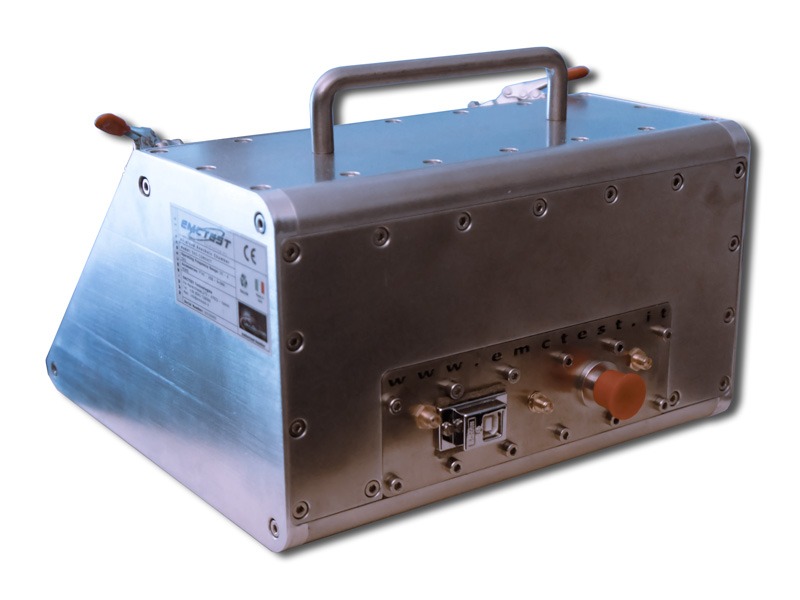

      I/O Feed Thrus: USB / RS-232 / RJ-45 / RJ-11
      RF Feed Thrus: SMA / N / BNC
      Other Accessories:
      • Shielding Window
      • Fiber optic feed Thru
      • Inox steel Handle
      Designed specifically for GSM, UMTS, TDMA, CDMA, AMPS, PCS, WIFI, BLUETOOTH and other small communication devices. it is projected in CAD and precision forged by CNC machines to obtain an high shielding standard environment. Heavy duty rugged is used throughout and high performance fabric non tissue gaskets are used at all joint locations assuring a reliable RF tight closure. The interior is optionally equipped with RF plain absorbers that provide a typical RF attenuation of -90dB @ 3GHz Perfect for 2.4GHz testing. Input/output connections and options can be configured to match any specific need thanks to a modular technical panel. Unit can host line filters for AC and DC power supplies up to 1000 V.


    Request now a free quotation.
