Any sensitive measurements where shielding is needed
Engineered and completely manufactured in Italy.
Ruggedized fully INOX steel construction
Unique compact space-saving design
Portable and flexible
Can host larger DUTs
Wideband High effective RF shielding
Excellent quality – Military standard
I/O Feed Thrus: USB / RS-232 / RJ-45 / RJ-11
RF Feed Thrus: SMA / N / BNC Fiber optic feed Thru

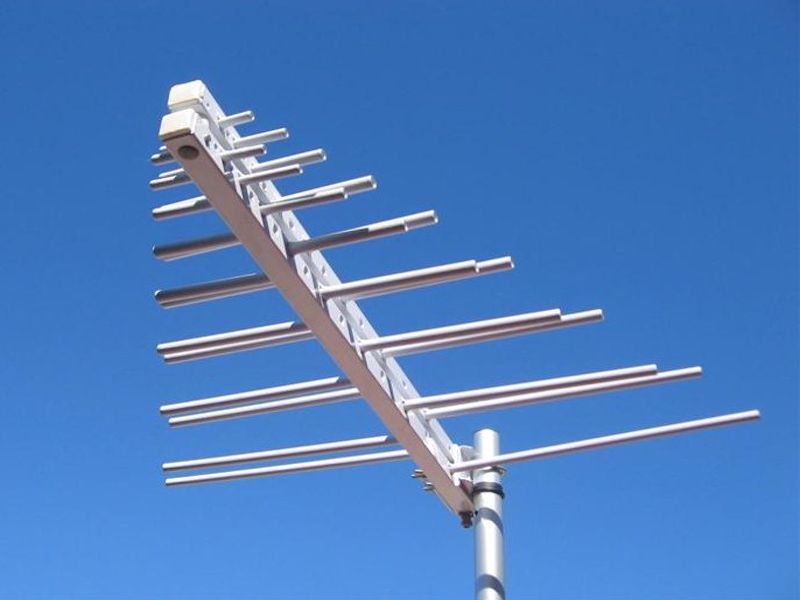

Internal Antennas: Log 900-2400 MHz / 1-10 GHz Other accesories: Shielded window, Fiber optic feed Thru, Line filter
Designed specifically for laptops and other sized ISM or GSM/UMTS communication devices, it is projected in CAD ad CNC constructed with tolerances as 0.09 mm to maintain an exceptionally well shielded environment. Heavy duty, rugged 1.5 mm INOX steel is used throughout and high performance fabric non tissue gaskets are used at all joint locations assuring a reliable RF tight closure. Oversized hinges and latches together with our patented dual trapeziodal door coupling layout in ERGAL are used to provide a physically tight seal. The interior is optionally equipped with RF plain absorbers that provide a typical RF attenuation of -90dB @ 3GHz Perfect for 2.4GHz testing. Input/output connections and options can be configured to match any specific need thanks to a modular technical panel. Unit can host line filters for AC and DC power supplies up to 1000 V.
